2.2KW 3 PHASE 400V IP20
Input
3 PHASE
Output
3 Phase
KW
2.20
IP Rating
IP20
Ambient Temperature
0 to 50°C
order before 16:00 for next working day delivery**
£ 229.01(ex VAT)
Add to basket- Product Description
- Product Specifications

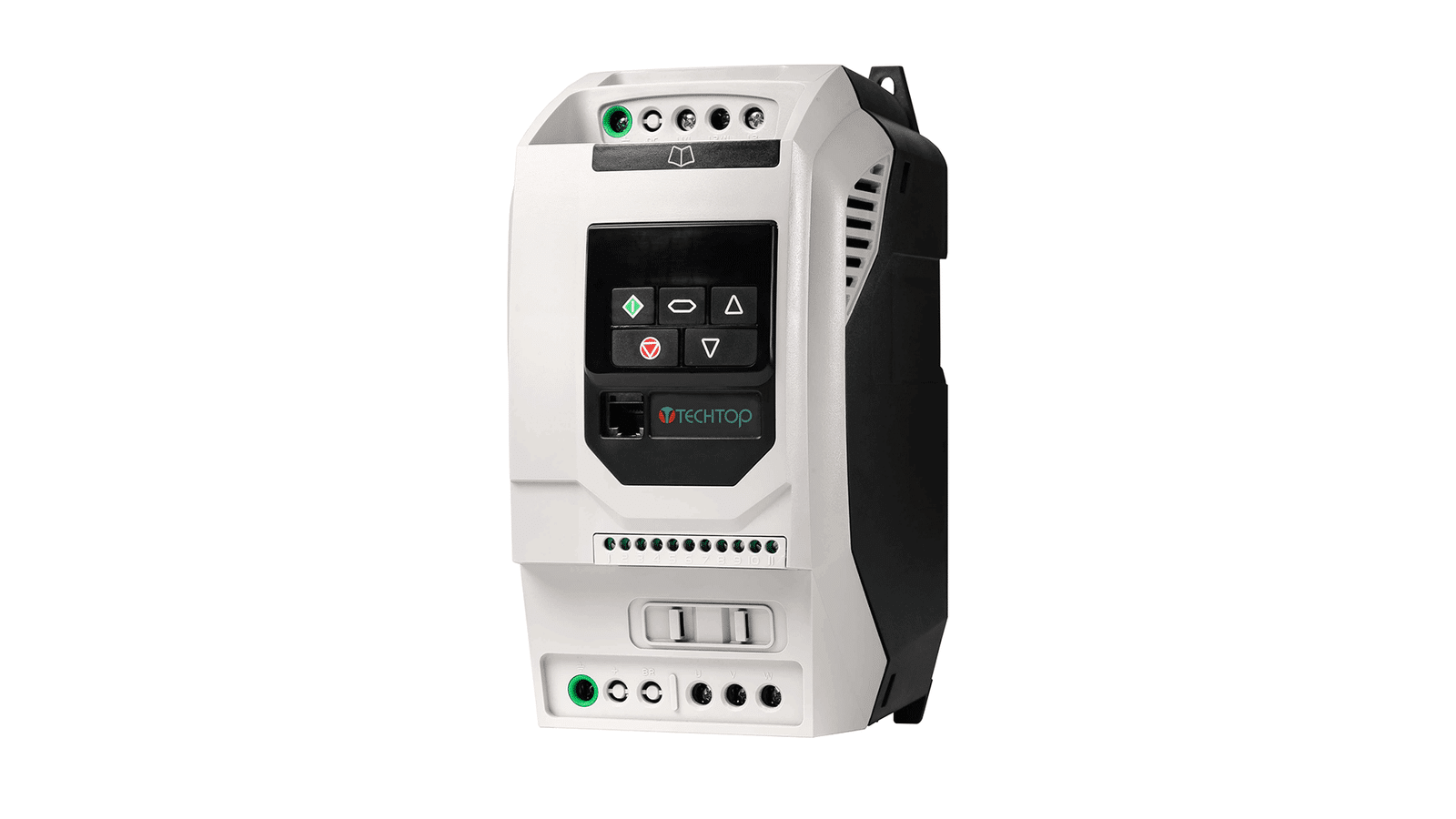

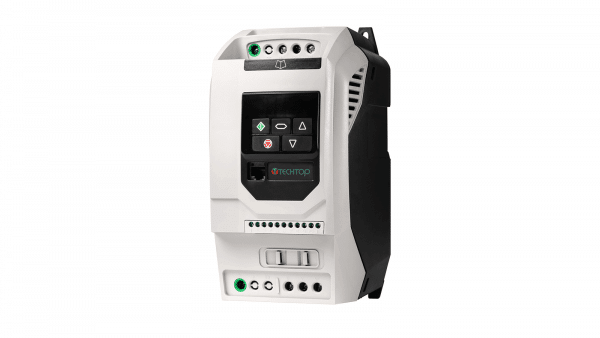

TEC Drive TEC-3-240058-3F42 provides precise motor control and energy savings using the factory settings. Simply power up and the drive rated at 2.2KW 3 PHASE 400V IP20 can immediately deliver energy savings. 14 basic parameters allow simple adjustment for your application if required, with up to 50 parameters available in total for a highly flexible performance.
Internal Category C1 EMC filter Internal PI control Internal brake chopper Application macros for industrial, fan and pump operation Dual analogue inputs Operates up to 50°C Bluetooth connectivity Option for control of single phase motors
| Part Number | TEC-3-240058-3F42 |
| Product Group | 2.2KW 3 PHASE 400V IP20 |
| EMC Filter | Yes |
| Rated Current | 5.80 |
| Phase | 3 PHASE |
| IP Rating | IP20 |
| Overload Capacity | 150% for 60 sec |
| Voltage Range | 380-400Vac |
| Braking Transistor | Yes |
| Ambient Temperature | 0 to 50°C |
| Manufacturers Part No | TEC-3-240058-3F42 |
| Frame Size | 2 |
