18.5KW 3 PHASE 400V IP20
Input
3 PHASE
Output
3 Phase
KW
18.50
IP Rating
IP20
Ambient Temperature
0 to 50°C
order before 16:00 for next working day delivery**
£ 871.92(ex VAT)
Add to basket- Product Description
- Product Specifications

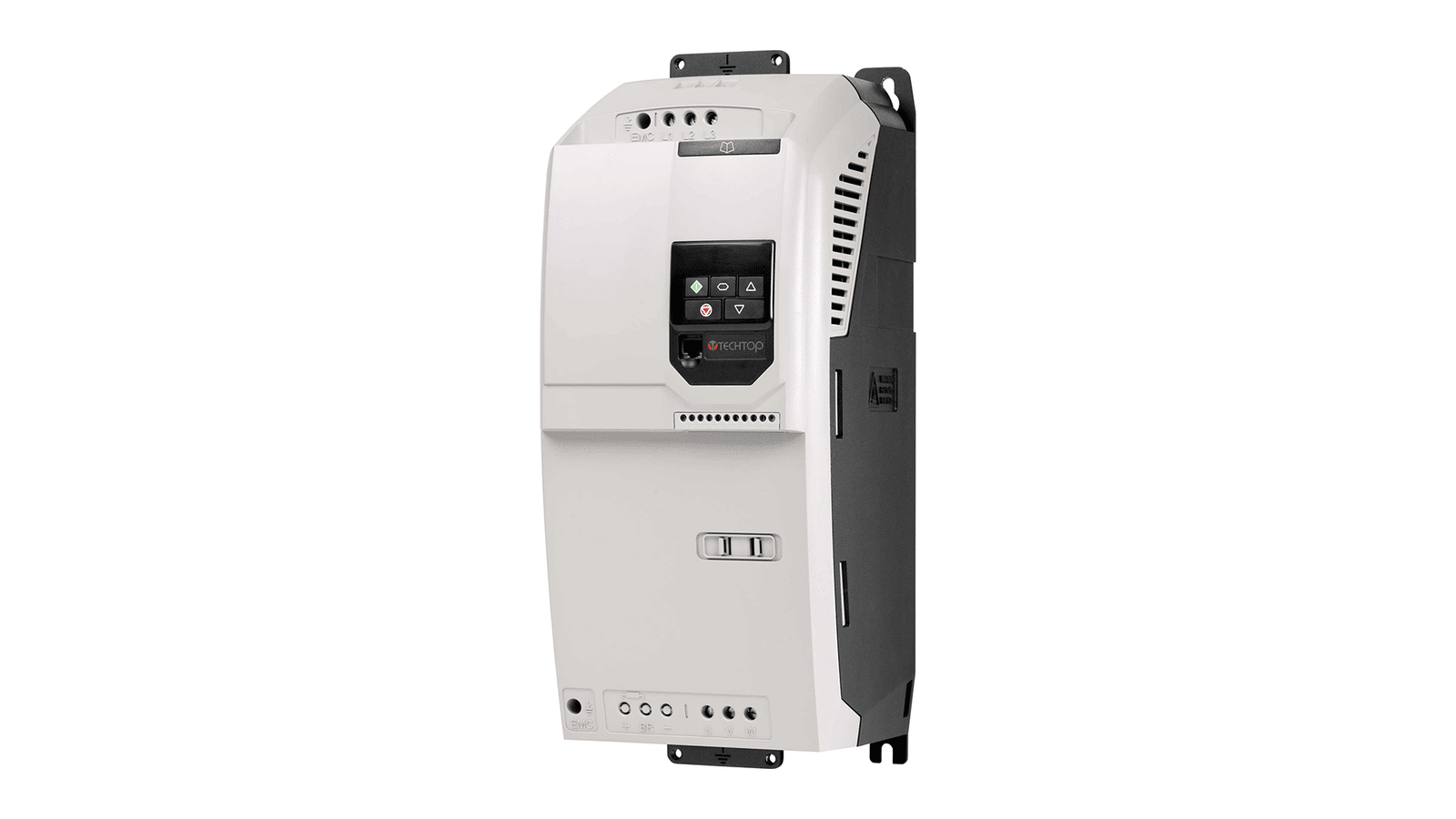

Focused on ease of use, TEC Drive TEC-3-440390-3F42 provides unrivalled simplicity of installation, connection and commissioning. The 18.5KW 3 PHASE 400V IP20 Inverter allows the user to benefit from precise motor control and energy savings within minutes.
Internal Category C1 EMC filter Internal PI control Internal brake chopper Application macros for industrial, fan and pump operation Dual analogue inputs Operates up to 50°C Bluetooth connectivity Option for control of single phase motors
| Part Number | TEC-3-440390-3F42 |
| Product Group | 18.5KW 3 PHASE 400V IP20 |
| EMC Filter | Yes |
| Rated Current | 39.00 |
| Phase | 3 PHASE |
| IP Rating | IP20 |
| Overload Capacity | 150% for 60 sec |
| Voltage Range | 380-400Vac |
| Braking Transistor | Yes |
| Ambient Temperature | 0 to 50°C |
| Manufacturers Part No | TEC-3-440390-3F42 |
| Frame Size | 4 |
