Series C Helical Worm Gearboxes
Radicon Gearboxes

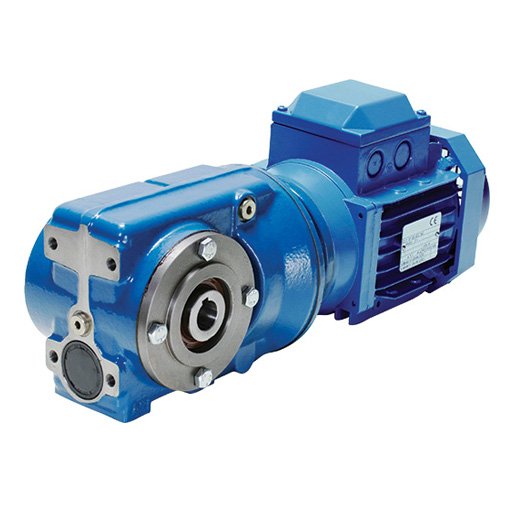

The Radicon Series C Helical Worm Gearbox is an advanced combination gear solution that pairs a gear stage with a worm gear for enhanced performance. This energy-efficient bevel-gear motor offers high torque capacity and a wide range of gear ratios, making it an ideal choice for applications requiring compact and reliable power transmission. With a power range of up to 45 kW and output torque reaching 10,000 Nm, the Series C gearbox is designed to meet diverse industrial needs. Part of the modular SWIFT series, it shares components with Series M spur gears and Series K bevel gears, enabling streamlined inventory and rapid delivery. Its IEC-standard electric motors provide flexibility and ease of replacement, making it a global-ready solution for end users.
Series C Features
The Radicon Series C gearbox is available in multiple sizes (03 to 10) and supports 2-, 3-, 4-, or 5-stage configurations with gear ratios from 8:1 to 250:1 in 2-stage reductions and up to 16,000:1 in combined units. Its modular design allows flange-mounted, foot-mounted, or shaft-mounted installations, while optional features like backstops and encoder flanges enhance functionality. With a durable cast-iron housing, the Series C offers excellent reliability and long life. Compatible with IEC motors (sizes 63 to 225), it accommodates various motor types, including brake motors and energy-efficient models. Additionally, ATEX-approved versions are available for explosive environments, ensuring safe and reliable operation.
Series C Applications
- Vacuum pump drives
- Dryer roll drives
- Press roll drives
- Winders
- Roll changers
- Ball mills
- Flap and rotary Valves
- Screw Conveyors
- Conveyors
- Kiln Drives
- Vertical rolling mills
- Bagging machines
Explore Our Other Radicon Ranges
The Series K bevel gears are an energy-efficient solution for both light and heavy industries, offering a range of configuration options. With torque capacity up to 50,000 Nm, they handle a variety of tasks, from standard gear motors to heavy-duty industrial drives.

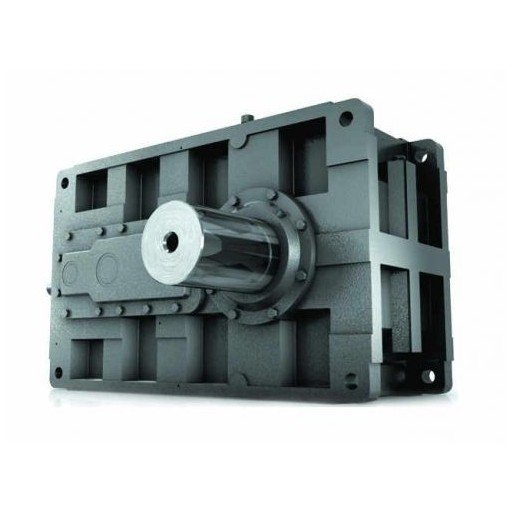

Radicon’s Series G industrial gearboxes are designed for demanding applications that require medium to large torque. Its advanced gear geometry ensures high efficiency and load capacity while minimising noise, even under heavy loads.
